Description

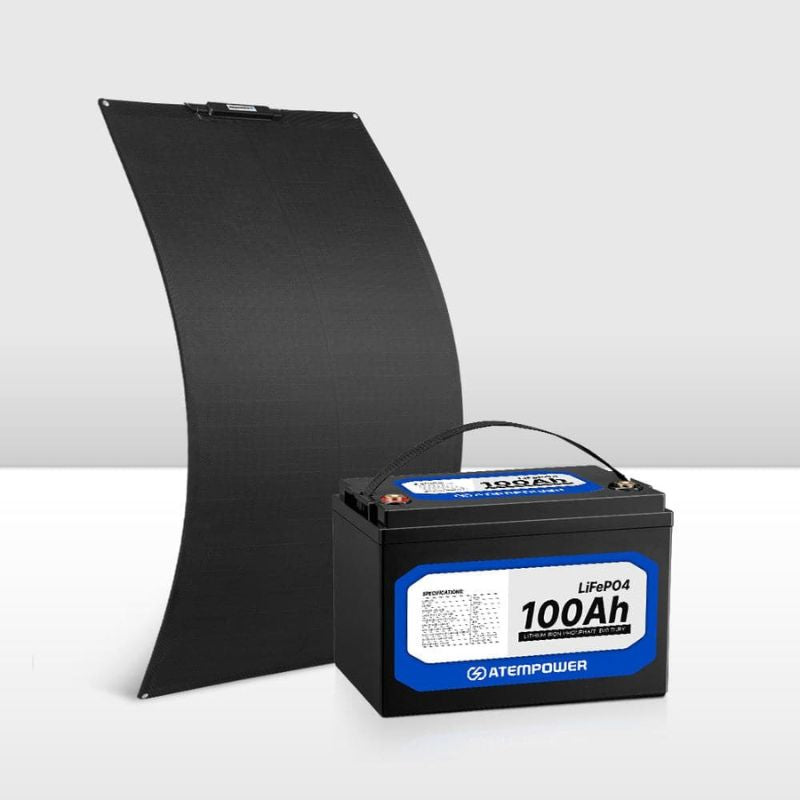

Introducing The 100Ah Lithium Battery from Atem Power - your essential companion for a reliable, adventure-ready energy source wherever the wild takes you
Power up your adventures with the Atem Power 12V 100Ah Lithium Battery—a serious upgrade from traditional lead-acid batteries. Designed with high-grade LiFePO4 cells, this powerhouse delivers up to 90% discharge capability, giving you double the usable power at just one-third the weight. With a life expectancy of 2,000 cycles, it’s built to last, so you can camp, RV, or rely on it for backup power without worrying about frequent replacements. It’s lightweight, rugged, and ready to fuel everything from camping fridges to 12V lights, making it ideal for any off-grid setup.
This lithium battery doesn’t just provide power; it offers peace of mind. Its built-in Battery Management System (BMS) protects against overcharge, overheating, and short circuits, while bolted cell terminals ensure superior amperage delivery and optimal conductivity. With a max 200A surge and continuous 100A output, the Atem Power 12V 100Ah is ready to handle high-demand devices like space heaters and electric ovens with ease. When you need reliable, long-lasting energy for your outdoor or emergency needs, this lithium battery is the answer.
Atem Power 100Ah Features
- A Grade Cell: Crafted with A grade cells, this lithium LiFePO4 battery boasts bolted cell terminals for enhanced amperage delivery and superior current conductivity.
- Extended Lifespan: With the ability to provide impressive 2,000 rounds of usage, ATEM POWER LiFePO4 battery outlasts its lead-acid counterparts by multiple folds.
- Expanded Usable Capacity: Unlike AGM batteries that recommend 50% discharge, this lithium LiFePO4 battery allows 80~90% discharge, providing higher usable capacity.
- Lightweight Design: This 12V 100Ah lithium ion battery delivers twice the power of a comparable lead-acid battery at just one third of the weight.
- High Power Output: With max 200A (≤7S) / continuous 100A discharge current, this LiFePO4 battery powers high wattage appliances like microwaves or coffee machines.
- Rapid Charging: Featuring reduced internal resistance, this lithium battery boasts swift charging capability for a quick recharge process and shorter downtime between uses.
- Unmatched Versatility: This 12V 100Ah lithium ion battery is designed to power camping fridges, 12V lights and more for your camping, RV, or backup application.
- Flexible Configurations: You can connect two 12V 100Ah lithium ion batteries in series or parallel to achieve your desired voltage and amp-hour capacity.
- High Quality BMS: It offers protection against over or under temperature, high or low voltage, overload and short circuit, and smart cell balancing for enhanced reliability.
- Safety Assured: This lithium battery exhibits thermal stability, effectively eliminating explosion risks and maintaining optimal discharge performance from -20℃ to 70℃.
100Ah Lithium LiFeP04 Battery Specifications
- 100Ah Lithium Battery
- Nominal Capacity: 100Ah
- Nominal Voltage: 12.8V
- Life Cycle: 2,000 Cycles
- Charge Voltage: 10V-14.6V
- Max. Continuous Charge Current(25°C): 50A
- Max. Continuous Discharge Current(25°C): 100A
- Max. Charge Current: 50A
- Max. Discharge Current(≤7S): 200A
- Internal Impedance: ≤10mΩ
- Charge Temperature: 0°C~60°C
- Discharge Temperature: -20~70°C
- Standard Operation Temperature: -20~70°C
- Self-discharge Rate(per month): 2%
- Max. Modules in Series/Parallel: 2S/2P
- Package Dimension: 41cm x 26.5cm x 30cm
- Gross Weight: 13.65kg
Battery Monitor 100A w/Shunt Specifications
- Shunt Capacity: 100A
- Working Voltage: 5~64V
- Standby Dissipation: 12mA (Backlight Off), 15mA (Backlight On)
- Preset Capacity Value: 1~999Ah
- Max. Measured Current:
- Peak 120A (≤1h)
- 300A (≤3s)
- Continuous 100A
- Voltage Accuracy: ±1%
- Current Accuracy: ±1%
- Capacity Accuracy: ±1%
- Temperature Range: -20°C to 45°C (-4°F to 113°F)
- Weight (LCD Interface): 107g (0.24lbs)
- Size (LCD Interface): 124mm x 81.5mm x 25mm (4.88in x 3.21in x 0.98in)
- Shielded Wire: 3.0m (118.11in)
- B+ Wire: 0.5m (19.69in)
- Package Size: 22cm x 13cm x 4cm
- Gross Weight: 0.44kg
Battery Monitor 200A w/Shunt Specifications
- Shunt Capacity: 200A
- Working Voltage: 5~64V
- Standby Dissipation: 12mA (Backlight Off)
- 15mA (Backlight On)
- Preset Capacity Value: 1~999Ah
- Max. Measured Current: Peak 240A≤1h, 600A≤3s
- Continuous 200A
- Voltage Accuracy: ±1%
- Current Accuracy: ±1%
- Capacity Accuracy: ±1%
- Temperature Range: -20℃～45℃ (-4℉~113℉)
- Weight (LCD Interface): 107g (0.24lbs)
- Size (LCD Interface): 124*81.5*25mm (4.88*3.21*0.98in)
- Shielded Wire: 3.0m (118.11in)
- B+ Wire: 0.5m (19.69in)
- Package Size: 22.5x13x4.5cm
- Gross Weight: 0.46kg
20A 12V DC to DC Battery Charger Specifications
- Type: Multi Stage
- Input:
- DC Battery: 13.0~16.0Volts
- Solar Input: 16.0-25.0 Volts
- Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
- Output Current:
- DC Output: 20A
- Solar Output: 20A
- Min. Solar Input Current:
- 5A
- Minimum Start Voltage: 2.5 Volts-For battery being charged
- Soft Start: Yes
- Operational Temperature: -10℃~45℃
- Soft Charge Current: DCDS20@20A
- Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiFePO4)
- Absorption: Constant voltage with automatic amperage control
- Equalisation: Automatic
- Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
- Float Charge Current: 100mA
- Battery Range: 60 to 600Ah
- 0-1 Metres: 12AWG
- 1-5 Metres: 8 AWG
- 5 metres+: 6 AWG
- Package Dimension: 31.6 x 24.0 x 6.30cm
- Gross Weight: 1.26kg
40A 12V DC to DC Battery Charger Specifications
- Max. Battery Input Voltage: 24V
- Min. Solar Input Voltage: 13V
- Max. Solar Input Current: 40A
- Max. Solar Input Voltage: 26V
- Max. Output Current: 40A
- DC Input Voltage: 12V(ACC ON),11.3V (ACC OFF),MAX 24V
- Rated Charging Current: 40A MAX (IN/OUT)
- Charging Voltage Range: 7~15.4V
- Operational Temperature (Ambient): -20℃~45℃
- Humidity: 0%~90%
- Soft Start: YES
- Soft Charge Current: 4A
- Bulk Charge Voltage: 12V
- Package Size: 28.7x19.5x6.5cm
- Gross Weight: 1.46kg
Voltage Sensitive Relay Specifications
- Continuous Current 140A
- Max Current 160A
- Current Draw - Charging 280mA
- Current Draw - Standby 8mA
- Disengage delay 5-10 Seconds
- Recommended Fuse 80Amp
- Power Studs M6 Stainless Steel
- Surge Protection Built-in
- Package Size: 16.50cm x 12.20cm x 6.00cm
- Gross Weight: 0.55kg
110W 12V Flexible Solar Panel Specifications
- Material: Shingled Cells
- Maximum Power: 110W
- Open-Circuit Voltage (VOC): 22.36V
- Short-Circuit Current (ISC): 6.25A
- Maximum Power Voltage (VMP): 18.64V
- Maximum Power Current (IMP): 5.9A
- Maximum System Voltage: 100V
- Temperature Range: -20°C~ 65°C
- Power Tolerance: ± 3%
- Product Size: 117x47x0.2cm
- Product Weight: 1.6kg
200W Shingled Solar Panel Kit Specifications
- Material: Shingled Cells
- Maximum Power: 200W
- Open-Circuit Voltage (VOC): 22.36V
- Short-Circuit Current (ISC): 11.37A
- Maximum Power Voltage (VMP): 18.64V
- Maximum Power Current (IMP): 10.72A
- Maximum System Voltage: 500V
- Temperature Range: -40°C~ 80°C
- Power Tolerance: ± 3%
- Color: Black
- Product Size: 115x88x3cm
- Package Size: 117.5x92x4cm
- Gross Weight: 12.94kg
12V Battery Box Specifications
- Input Voltage: 12-24 V DC
- Anderson Plugs: 50A
- Type C Included: Yes
- CIG Socket: 12V
- Circuit Breaker: 10A
- QC 3.0 Outputs:
- 5V 3.1A
- 7V 2.4A
- 9V 2A
- 12V 1.5A
- Internal Size: 39 x 17 x 20cm
- Package Dimension: 46.5cm x 29cm x 25cm
- Gross Weight: 2kg
Battery Box Dual Battery System built-in VSR Isolator Specifications
- Case Material: HDPE
- Box External Dimensions: 51.9cm x 25.8cm x 36.3cm
- Box Internal Dimensions: 44.5cm x 19.5cm x 25cm
- Box Weight: 3.25kg
- Max. Battery Dimensions: 44.5cm x 19.5cm x 25.0cm
- Max. Battery Weight: 45kg
- Suitable Battery Types: 12V Deep Cycle Batteries
- Operating Temperature: -20°C ~ +60°C (-4°F ~ +140°F)
- Ports:
- 3 x Cigarette Lighter Socket Outputs: 12V,10A
- 1 x USB Type-C Port: Max 18W
- General:
- 5V/3A; 9V/2A;12V/1.5A
- PD3.0 (PPS): 3.6~12V/3A(PPS: 20mV/step);
- QC3.0: 3.6~12V, 2.6AMAX;
- BC1.2: 5V/3.2A
- Brand-Specific:
- APPLE 2.4A;
- AFC (Samsung);
- FCP/SCP (Huawei)
- 2 x USB Type-A Ports: Max 18W (Shared Between Both Ports)
- General:
- QC2.0: 5V/3A; 9V/2A; 12V/1.5A;
- QC3.0: 3.6~12V, 2.6AMAX
- Brand-Specific:
- AFC (Samsung);
- FCP (Huawei)
- 1 x USB Type-A Port: 5V/1A
- 1 x USB Type-A Port: 5V/2.1A
- 2 x Anderson Plug Outputs/Inputs (Grey) : 50A
- 1 x Anderson Plug Input (Red): 50A
- Package Size: 55.5cm x 29cm x 40.5cm
- Gross Weight: 4.9kg
What you receive in this Atem Power Battery package - excluding add on:
- 1 x Atem Power 100Ah Lithium Iron Phosphate Battery
- Set of Screws & Nuts For Battery
- 1 x User Manual For Battery
Warranty
- 3 Years Warranty For Lithium Battery
- 2 Years Warranty For Battery Box
- 1 Year Warranty For Battery Monitor
- 1 Year Warranty For Battery Charger
Atem Power Lithium Battery Manual
